Polyurethane Concrete lifting Trailer

HMI Poly Trailer System is
Concrete Raising Made Simple

The HMI polyurethane trailer unit is its very own turnkey business solution on wheels. It gives you everything you need to run a profitable concrete raising business, from compressors and generators, to hoses and pumps, it’s truly a “business in a box”!

LEARN HOW TO START A SUCCESSFUL
CONCRETE RAISING BUSINESS

Upcoming Discovery & Training Seminars

  • February 28-29, 2024  Las Vegas, NV
  • April 11-12, 2024  Manitowoc, WI

In 2 days, we teach you everything you need to know to start your own concrete raising company!

Top polyurethane concrete lifting trailer

PERFECT FOR MUNICIPALITIES

Our polyurethane concrete raising trailer system is also perfect for municipalities that do not require a full poly concrete raising truck system. Offering you everything that you need to get the job done right, from equipment to training, the HMI poly trailer system will help you level your concrete in no time.

POLY TRAILER SYSTEM SPECS

The follow options are available with the HMI Polyurethane Trailer System for concrete raising:

  • Heated hose extension
  • Reactor size
  • Electric drill
  • Material set(s)
  • Graphic trailer wrap: Red, Blue, Green, Gray, Orange, Yellow
  • Exterior transfer set
  • 16 ft. trailer

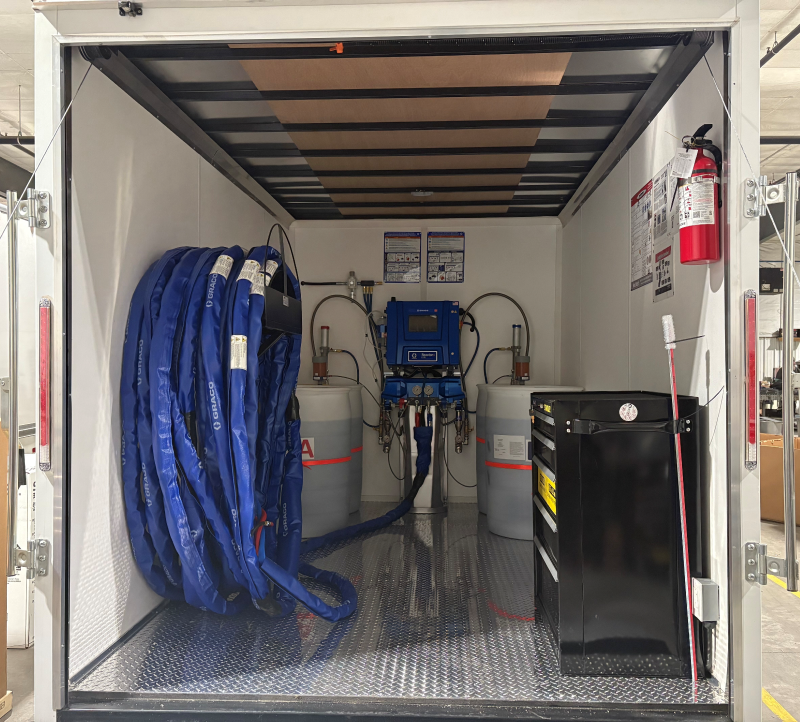

Our 14′ v-nose polyurethane foam concrete raising trailer includes a lot of features, here are some of the most important:

  • Generator – Gas 22KW
  • Compressor
  • 160 ft. heated pumping hose
  • Workbench
  • E20 Reactor
  • Space to carry up to two sets of material
  • EliteONE Injection gun
  • Transfer pumps
  • Hose rack
  • Electrical system- 100 AMP SRV
  • Refrigerated air dryer

When you purchase the HMI Poly Trailer system, you will also receive:

  • Discovery & Training Seminar
  • HMI job bidding support
  • Job shadowing opportunities
  • HMI service support
  • HMI marketing support

Poly Pro 20 Trailer

  • Injection accessories: Included
  • Trailer: 14’ Enclosed
  • Reactor: E20
  • Generator: 22 kw
  • Air Compressor: 175 PSI Electric
  • Refrigerated Air Dryer: Included
  • Heated Hose & Rack: 160’
  • Max Recommended Hose Length: 210’
  • Transfer Pumps: 2-2.5 gpm
  • Diamond Plate Flooring: Included
  • Partition Wall & Finishing: Included
  • Workbench: Installed
  • Material Capacity: 2 Drum Sets= 19 cu. yds

Poly Pro 30 Trailer

  • Injection accessories: Included
  • Trailer: 18’ Enclosed
  • Reactor: E30
  • Generator: 30 kw
  • Air Compressor: 175 PSI Electric
  • Refrigerated Air Dryer: Included
  • Heated Hose & Rack: 210’
  • Max Recommended Hose Length: 310’
  • Transfer Pumps: 2-2.5 gpm
  • Diamond Plate Flooring: Included
  • Partition Wall & Finishing: Included
  • Workbench: Installed
  • Material Capacity: 2 Drum Sets =up to 19 cu.yds.

While the HMI Polyurethane Trailer System for concrete raising works for many different types of businesses, we often see the following receive great benefits from its utilization:

  • Contracting firms
  • Independent contractors
  • Entrepreneurs
  • Property management firms
  • Municipalities

Send us a message

Interested in learning more about the HMI Poly Trailer System? Let us know!

info@mudpumps.com

Looking to LIFT, LEVEL and FILL VOIDS?

The Deluxe Trailer system includes the Standard PolyPro20 & Basic Fillfoam package in a 16ft trailer. Inquire for full sell sheet and pricing.

To see the full line of Fillfoam void filling equipment, visit the FillRite Technologies website!

Are you interested in learning more about the HMI Poly Concrete Raising Trailer System?
