IONIC CLAY STABILIZER EQUIPMENT

Home » Equipment » Ionic Clay Stabilizer Equipment

Fix swelling clay fast

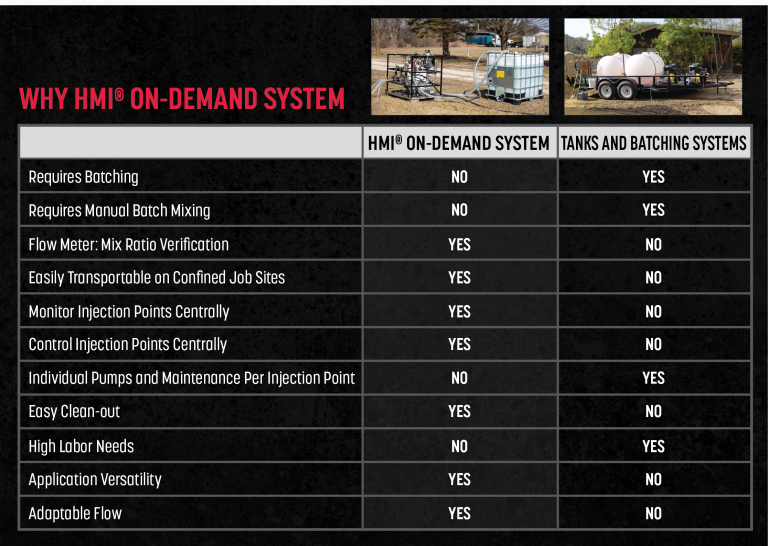

Traditional injection systems rely on large trailers with two bulk tanks. One tank mixes while the other pumps, forcing contractors to manage batches, switch back and forth, and run material through extensive plumbing and many gas powered pumps. These trailers are heavy, complex, and difficult to move between jobsites.

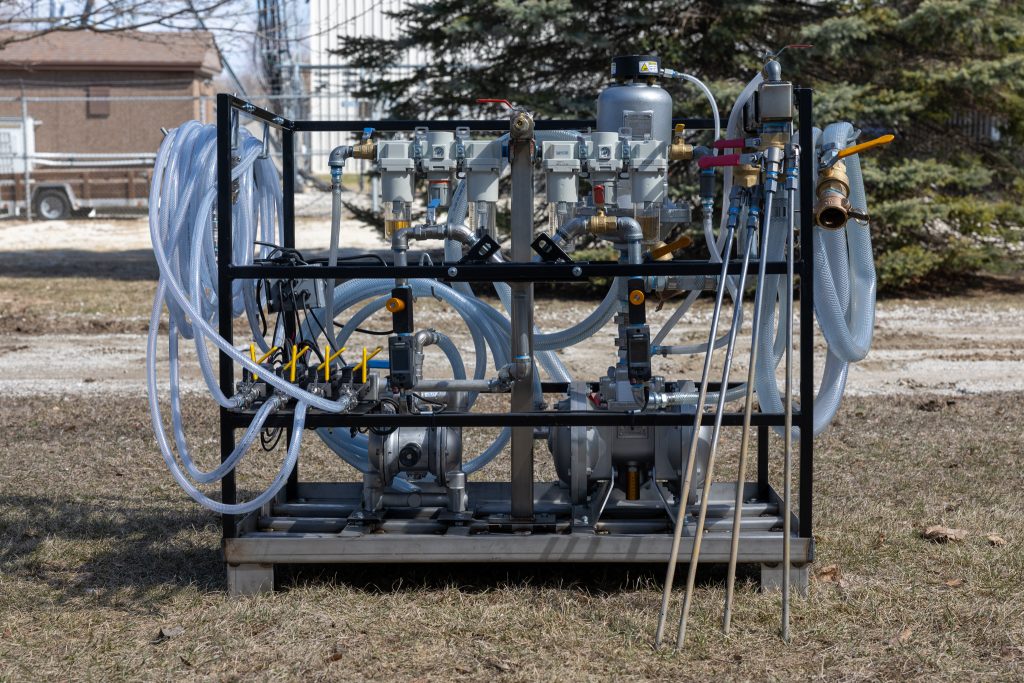

The ICS Injection Equipment replaces all of that with a compact, on-demand system. Instead of bulk tanks, it draws directly from your ICS containers and a water tote or tank, eliminating time-consuming batching and reducing manpower. The unit operates on compressed air and uses115V power for the metering system, making setup simple and reliable.

Request Soil Improvement Information

This site is protected by reCAPTCHA and the
Google Privacy Policy and Terms of Services apply.

Soil Improvement Seminar

October 16-17, 2025 Manitowoc, WI

In 2 days, we will teach you what you need to know to successfully tackle soil improvement projects!

CONTRACTOR ADVANTAGES

Eliminate downtime — no waiting on batch cycles or tank changes means more production hours per day.
Compact & transportable— compact unit with fork pockets and hose storage makes mobilization quick and easy.
Get paid for precision — flow meters and totalizers at each injection point verify exactly what was installed, protecting margins and building trust with clients.
On-Demand Mixing — system automatically maintains correct mixing ratio
Support more volume — four injection points can be run simultaneously, each with its own shutoff valve for flexible sequencing.
Adapt on the fly — variable flow and pressure let you tailor output to different soil conditions, from heavy injection to a controlled drip.
Lower maintenance costs — fewer hoses and fittings means fewer leak points and less time spent on repairs.
Finish cleanly — easy end-of-day flush keeps the system ready for the next project.
Reduce labor needs — smaller crew can handle setup, operation, and takedown compared to bulky trailer systems.
Versatility — designed to be used in both remedial and in new construction application without the need for water trucks.

HOW THE EQUIPMENT WORKS

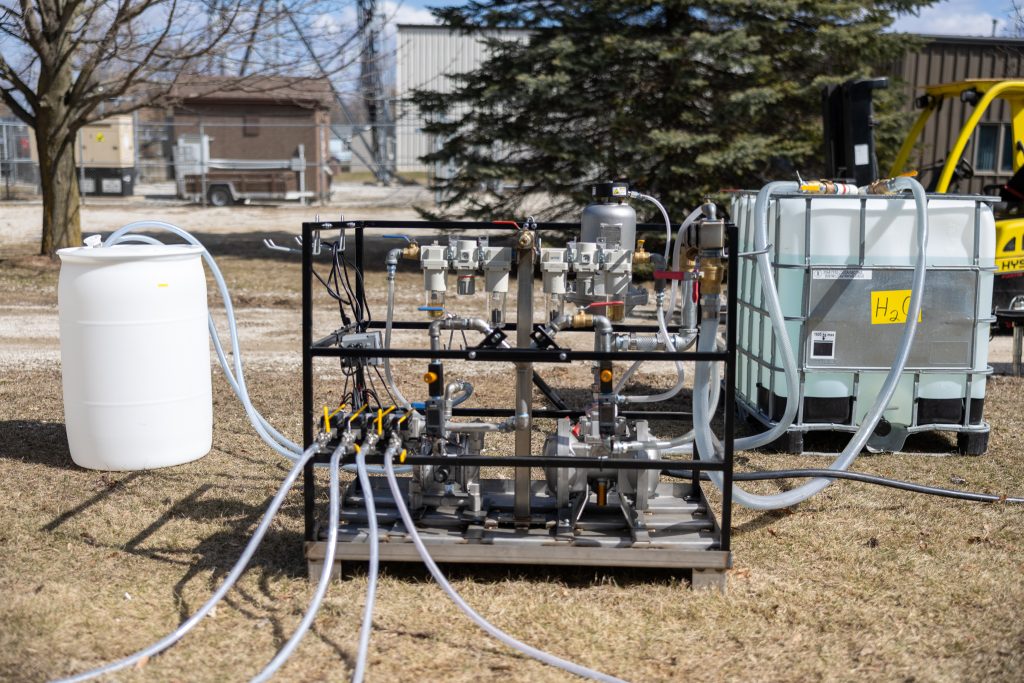

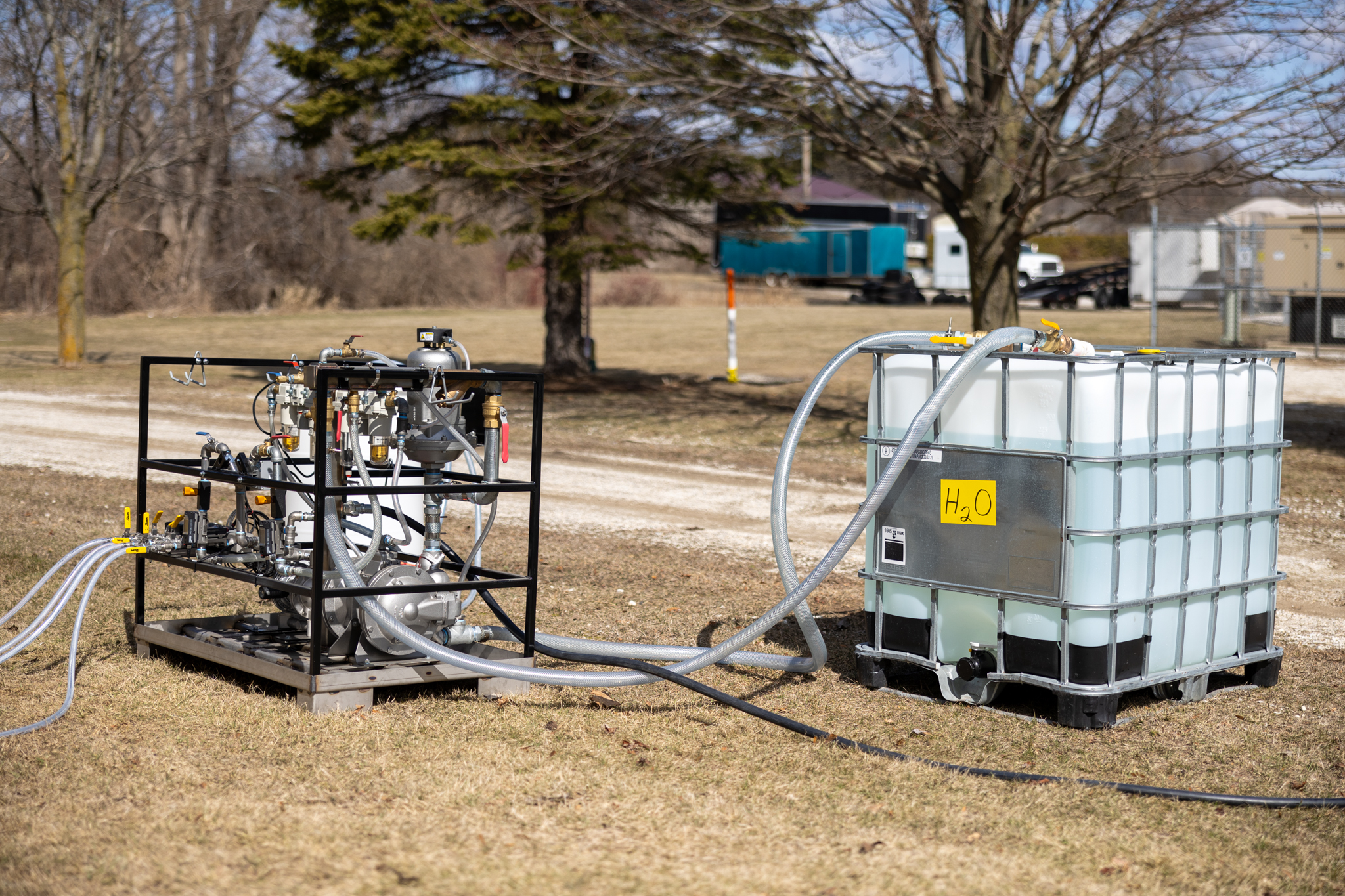

The ICS Injection Equipment is designed for simplicity and precision on the jobsite. Contractors connect one suction line to a water tote or tank and another to the ICS solution container. Pneumatic drives power the pumping system, while the metering system (powered by standard 115V electricity) tracks and displays flow at each injection point.

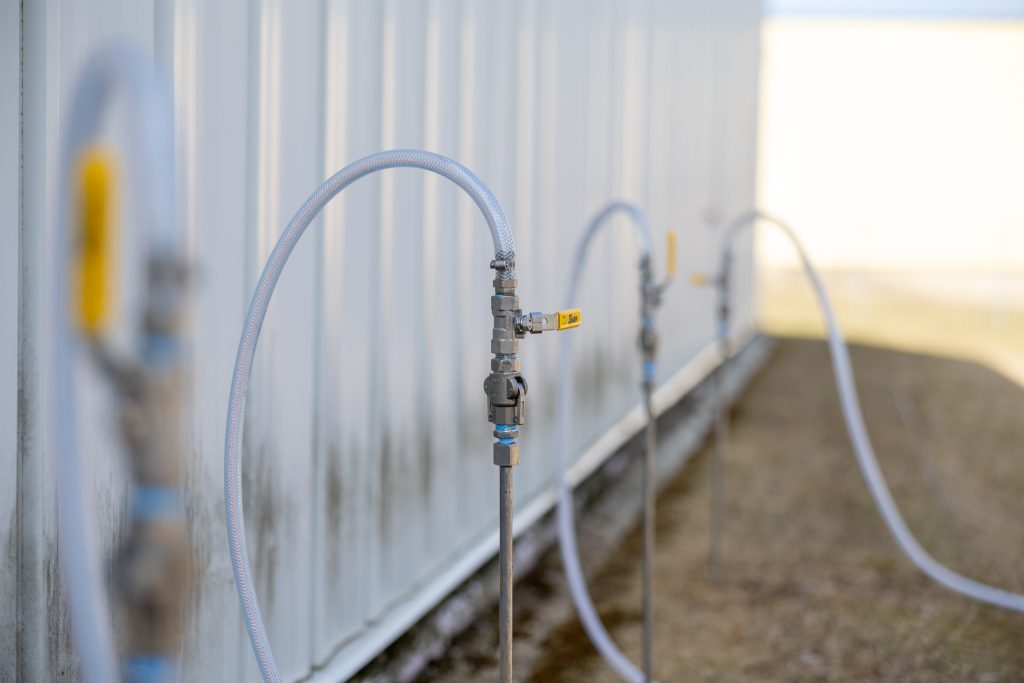

Operators adjust flow and pressure depending on site conditions — from high output to a controlled drip. With four independent injection lines, multiple points can be treated at once, each monitored by its own flow meter and totalizer to verify exactly how much material has been installed.

At the end of the day, cleanout is simple: place the suction tubes in water, flush the lines, and the system is ready for the next project.

The equipment can be used both in new construction and in remedial applications

To learn more about how ICS prevents clay swelling, please visit our Ionic Clay Stabilizer Material Webpage.

TECHNICAL SPECIFICATIONS

Power Requirements: Pneumatic (compressed air supply) + 115V electric for meters

Injection Points: 4 simultaneous lines with individual shutoff valves

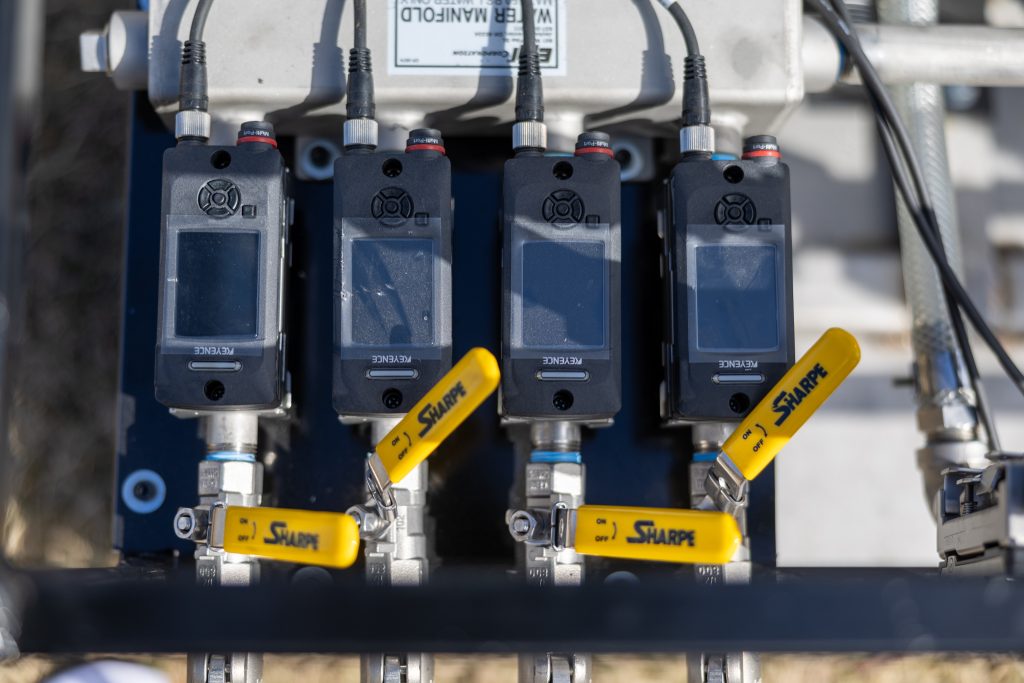

Flow Monitoring: Flow meters and totalizers per injection line

Water Supply: External tote or tank (contractor provided)

ICS Supply: Direct draw from ICS containers

Transport Features: Fork pockets, protective cage, hose storage

Cleanout: Suction tubes placed in water for quick flush

Typical Applications: Pre-construction mixing, in-situ injection, under-slab remediation

LEARN MORE ABOUT ICS EQUIPMENT

This equipment is purpose-built for use with HMI Ionic Clay Stabilizer (ICS) solution. To get the most out of your injection system, visit the ICS Material page for product details, dilution guidance, and treatment procedures.
